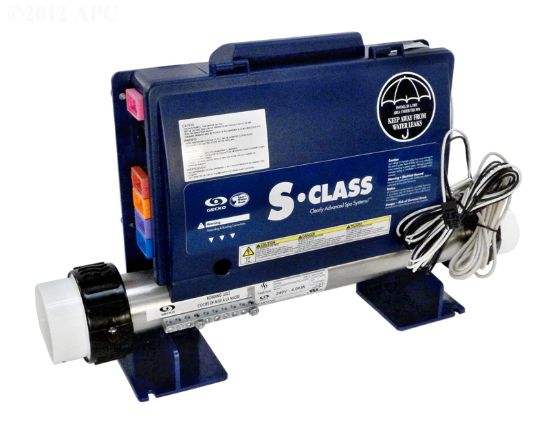

METAPAK S SERIES W/ JJ MINI 3-72-7074
Manufacturer: GECKO ALLIANCE MPN: 0202-205162
Gecko's goal when designing the S-Class™ was, as always, to offer an unbeatable quality/cost ratio. Our team did this by coming up with a pack that is easy to install, operate and maintain. The S-Class™ offers many features to meet the high level of performance and functionality spa manufacturers have come to expect from a digital pack.
The S-Class™ is an entry level pack for 120/240V applications that will support up to 2 pumps, 1 blower, a heater, a light, ozonator and a circulation pump.
The S-Class™ can be used in conjunction with a choice of topside control panels.
Mini J&J Style Receptacles - Component Cords Not Included
Enclosure - Plastic - 14.25" x 11.5" x 3.38" WxHxD
Keypad - Not Included
Works With The Following Keypads - (Not Included) TSC-9, TSC-18, TSC-19, TSC-35
NOTE - (TSC-35 Must Move Jumper on Circuit Board)
Heater Style - Flow Thru (Fixed)
Wattage - 1.0/4.0kW
Measures - 2" x 15" long
System Voltage - 120/240V (Neutral Required)
Component Configuration - 120v/240v - Pump1 (2spd) + Pump2 or Blower (1spd) + Ozone + AV Receptacle (120/240v)
Included With System - 4.0kw Heater & Sensors
