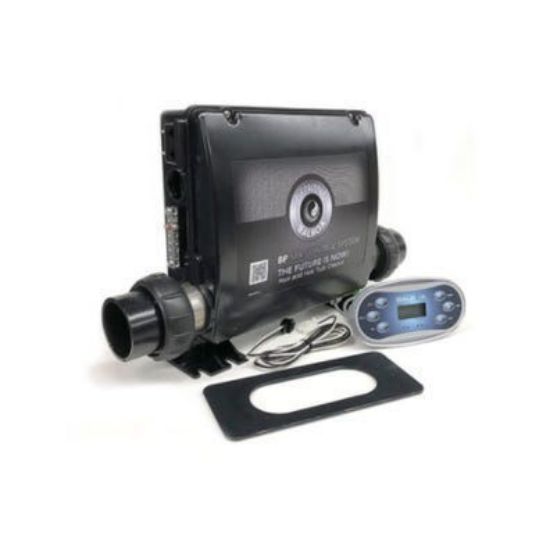

G6406 Replacment Hot tub pack Balboa BP7 Control System Kit 230V Only, 4.0kW, 3 Pumps with TP600 Topside & Light Cord

Control System Kit, Balboa BP7, 230V Only, 4.0kW, 3 Pumps w/TP600 Topside & Light Cord

Be the first to review this product

Manufacturer: BALBOA WATER GROUP INC

Availability: 9996 in stock

SKU: G6406

Manufacturer part number: G6406

Manufacturer Recommended Price: $658.80

Price: $554.20

Qty:

BP7 Control System Bundle top side and heater with pack No cords must use your cords

The Next Generation of BP Hot Tub Control Systems is finally here.

A system built for the aftermarket.. With 7 relays, the BP7 has 32 different setups and can power a spa with 1-4 pumps, including Microsilk systems. Can also replace any Balboa BP System* while using the existing topside that is already installed on the spa. Will replace any Balboa VS or EL System* when you match it with any TP or SpaTouch topside panel. Will replace any Balboa or other brand’s non-low flow system* when you match it with any TP or SpaTouch topside panel. This system can only be used at 220v.

Additional Information

System Input Voltage - 240V Only (4-wire)
Main Circuit - 2- Speed Pump 120/240V
2nd Circuit - 1- Speed Blower or Pump 120/240V
3rd Circuit - 1- Speed Blower or Pump 120/240V
Heater Style - Straight/Fixed, Wattage - 4.0kW

Spaside Control Included- TP600
Supports all TP and SpaTouch topsides
(LED, Color LCD and Touchscreens)

BP7 Features-
7 Relays - The BP7 has 32 different setups and can power a spa with 1-4 pumps, including MicroSilk systems

CAN REPLACE ANY BALBOA SYSTEM*
While using the existing topside that is already installed on the spa

CAN REPLACE ANY BALBOA VS OR EL SYSTEM*
When you match it with any TP or SpaTouch™ topside panel

CAN REPLACE ANY BALBOA OR OTHER BRAND'S NON-LOW FLOW SYSTEM*
When you match it with any TP or SpaTouch topside panel.
*Some exceptions may apply.

Supports all BP ancillary products
(ControlMySpa™, BBA™, CZ™ and Status Pro)

NOTE- When replacing VS systems with the BP7 systems, BP7 box is larger. BP7 Control Box measurements-
11.50 H x 16.99 L (with heater) x 4.80" D

NOTE- BP7 system has an input voltage of 240 volt ONLY. But can be converted and ran for 120 volt component inputs. See install info or call a technician for assistance.

Component Configuration - Pump1 + Pump2/Blower + Pump3

Alternate Part Numbers

54218

http://www.balboawatergroup.com/BP7
